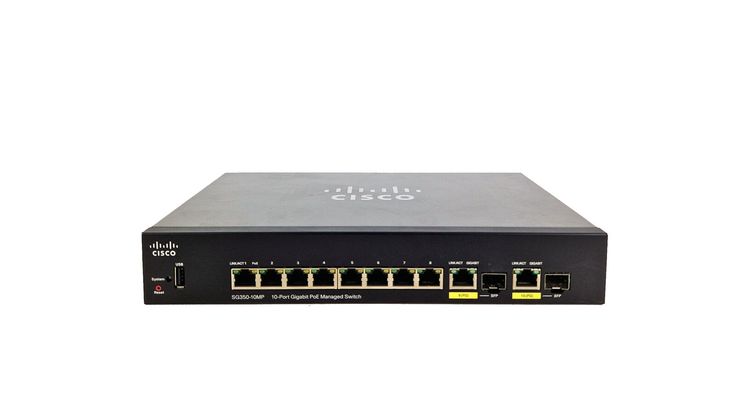

Cisco SG350-10P 10-port Gigabit PoE Managed Switch

Specification — Cisco SG350-10P

Main Feature

Type: Managed Switch
Ports: 10 Gigabit Ethernet ports

• 8 × RJ-45 (10/100/1000) with PoE+ support

• 2 × combo ports (RJ-45/SFP) for uplink flexibility

Switching Capacity: 20 Gbps
Forwarding Performance (64-byte): 14.88 million pps

Network Standards Supported:
IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.3az, 802.1x, 802.1q, 802.1p, 802.1d, 802.1w, 802.1s

MAC Address Table Size: 16,000 entries

Packet Buffer: 1.5 MB (shared dynamic)

Memory & Storage:

• Flash: 256 MB

• DRAM / System memory: 512 MB

PoE / Power

• PoE+ support: 8 ports with PoE+ (802.3at)

• Total PoE power budget: ~62 W

• Internal power supply: AC 100-240V, 50/60 Hz (auto range)

Physical & Environmental
Dimensions (W × H × D): 279.4 mm × 44.45 mm × 170 mm (i.e. ~11 in × 1.75 in × 6.7 in)
Weight: ~1.19 kg (2.62 lbs)

Operating Temperature: 0 °C to 50 °C
Storage Temperature: –25 °C to 70 °C
Operating Humidity: 10% to 90%, non-condensing

Other Features

• Console port: RJ-45 for CLI access

• USB port: for file and firmware management

• Auto SmartPorts (auto-configure port profiles)

• QoS, VLANs, ACLs, link aggregation (LACP), static routing (Lite)

• Jumbo frame support (up to 9,216 bytes)

Warranty & Support

• Cisco limited lifetime warranty (with advance replacement in many regions)

DESCRIPTION

The Cisco SG350-10P is a compact and powerful 10-Port Gigabit PoE+ Managed Switch built for small to medium-sized business networks. It includes 8 PoE+ Gigabit Ethernet ports and 2 combo Gigabit RJ-45/SFP uplinks, providing flexible connectivity for both wired and fiber devices. With a total PoE power budget of 62W, it easily supports IP cameras, access points, and VoIP phones. The switch delivers advanced Layer 2 and Layer 3 Lite capabilities, including VLANs, QoS, link aggregation, and static routing, ensuring secure and optimized traffic flow. Compact, energy-efficient, and easy to manage, the SG350-10P is an excellent choice for reliable business performance and smart network expansion.
